Quick Answer / TL;DR: Most lawn mower recoil starter failures come down to three parts: a snapped pull rope, a broken recoil spring, or worn pawls. Pull the spark plug boot, remove the recoil housing, diagnose the fault, and replace the failed component. Most repairs take 30–60 minutes and cost under $15 in parts.
Working on a gas push mower? Our PowerSmart 21-inch review shows how this exact repair applies to a popular budget model.
What You Need
A broken recoil starter is one of the most common lawn mower failures — the rope won’t retract, pulls out with no resistance, or snaps entirely. Before you start, locate your mower’s model number (usually on a sticker on the engine block) and order parts matched to it. Honda, Briggs & Stratton, Husqvarna, and Craftsman designs are broadly similar, so these steps apply across most brands.

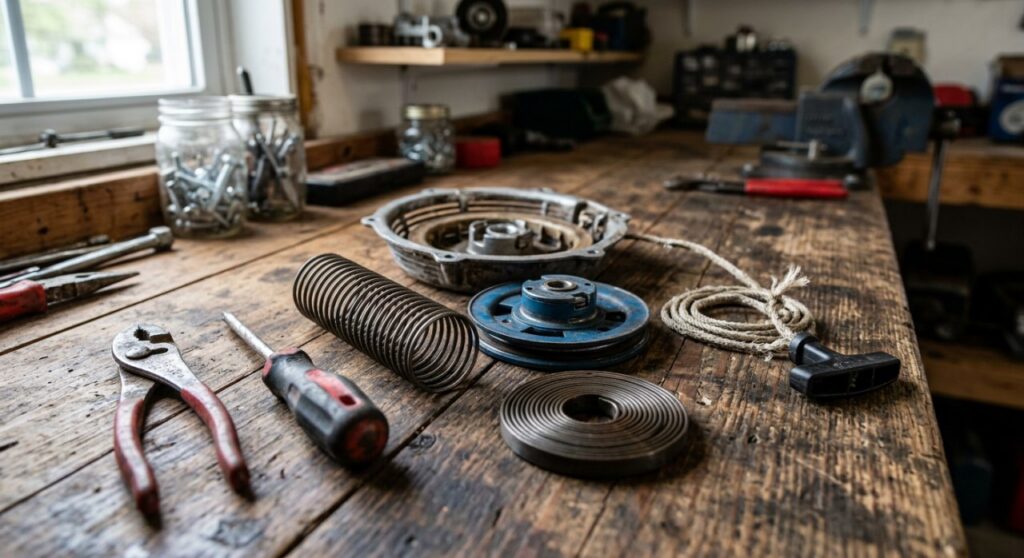

Tools & Materials
| Item | Purpose | Notes |
|---|---|---|
| Flathead & Phillips screwdrivers | Remove recoil housing cover | Have both sizes on hand |
| Needle-nose pliers | Handle the spring, thread the rope | Essential for spring work |
| Replacement pull rope | New starter rope | Match diameter & length to your model |
| Recoil spring (if needed) | Restore retraction tension | Buy model-specific |
| Replacement pawls/clips | Fix the engagement mechanism | Often sold as a kit |
| Leather work gloves | Protect hands from spring snap | Strongly recommended |
| Safety glasses | Eye protection during spring work | Non-negotiable |
| Lighter or matches | Seal rope end to prevent fraying | Any type works |
| Zip tie or clamp | Lock the pulley during reassembly | Standard size |
⚠️ Before You Touch Anything
Safety first: Always pull the spark plug boot off before working on the starter. If the engine happens to turn over, the blade can kick the crankshaft and cause serious injury. Also let a hot engine cool completely — recoil housings sit directly over the muffler on most models.
Step-by-Step Guide
Step 1: Diagnose the Problem First
Pull the starter rope slowly and observe what happens. Each symptom points to a specific fault — identifying it correctly means you only buy the part you actually need.
| Symptom | Likely Cause |
|---|---|
| Rope pulls out but won’t retract | Broken or dislodged recoil spring |
| Rope feels completely loose, no resistance | Spring broken or unhooked |
| Rope is frayed, snapped, or missing | Worn pull rope |
| Handle pulls out fully and detaches | Rope knot failed inside the pulley |
| Rope pulls but engine doesn’t crank | Worn pawls not engaging the flywheel |
💡 Pro Tip: If the housing comes off easily, inspect all three components at once — rope, spring, and pawls. If one part is worn, its neighbors usually are too. Replacing everything in a single session saves a second teardown later.
Step 2: Remove the Recoil Housing
Disconnect the spark plug boot, then remove the 3–4 screws or bolts holding the recoil starter to the engine. On many push mowers the housing sits under the engine shroud, so you may need to remove a plastic top cover first. Set the screws aside safely — they’re often different lengths.
💡 Pro Tip: Photograph the housing from multiple angles as you disassemble. Spring and pawl orientation is easy to forget, and a phone photo is worth more than any diagram.
Step 3: Replace the Pull Rope
- Hold the pulley with pliers and remove the old rope stub from the pulley anchor hole.
- Rotate the pulley in the direction that winds the spring until you feel firm resistance — typically 4–6 full turns.
- Lock the pulley in place with your zip tie or clamp so the spring can’t unwind.
- Thread the new rope through the housing eyelet and pulley anchor, tie a tight overhand knot, and melt the end with a lighter so it can’t fray.
- Cut the rope to length (match the old one — usually 4–5 feet), thread it through the handle, knot it, and seal that end too.
⚠️ Warning: The pulley is now holding a fully wound spring. Keep your grip controlled and never let it spin free — a released spring can whip out of the housing with enough force to cut skin or cause eye injury.
Step 4: Replace the Recoil Spring (If Broken)
If the spring is snapped or unhooked, remove the pulley to access the spring chamber. Many modern starters use a self-contained spring cassette — if yours does, simply drop the new cassette in; it arrives pre-wound and is far safer to install. If your starter uses a loose spring, install it carefully with needle-nose pliers, working around the chamber in the direction it naturally coils.
⚠️ Warning: A loose recoil spring is the most dangerous part of this repair. Wear safety glasses and gloves, work slowly, and if the spring escapes the housing, buy a replacement cassette rather than trying to re-coil it.
Step 5: Inspect and Replace the Pawls
The pawls are the small flyweight catch mechanisms that extend outward when you pull, engaging notches in the engine’s flywheel cup. If the rope pulls but the engine doesn’t crank, worn or sticky pawls are the culprit. Check them for rounding, cracks, and free pivot movement, then replace with a pawl kit (they’re inexpensive and usually include the springs and retaining screws).
Step 6: Reassemble and Test
- Re-seat the pulley and spring, remove the zip tie, and let the rope retract slowly to confirm even spring tension.
- Bolt the recoil housing back onto the engine, tightening screws snugly but not excessively.
- Reconnect the spark plug boot and pull-test several times — the rope should retract smoothly and the pawls should click audibly against the flywheel.
- Start the engine normally. If it cranks and runs, the repair is complete.
Common Mistakes & Troubleshooting
- Under-winding the spring. Too few pre-wind turns and the rope retracts sluggishly or not at all. Aim for 4–6 full turns before locking the pulley — enough tension for a firm, complete retraction.
- Over-winding and short rope. Too many turns leaves you with a handle that won’t sit flush against the housing and a spring pre-loaded near its limit. Back off a turn if the handle won’t rest naturally.
- Skipping the knot melt. An unsealed rope end frays and slips out of the pulley anchor within a few pulls. Melt both ends of the rope — pulley side and handle side.
- Reinstalling a tired spring with new rope. A stretched or partially cracked spring will fail soon after your new rope goes in. If the spring shows any cracks, replace it in the same session.
- Forgetting the spark plug boot. Beyond being a safety hazard, an connected plug can let the engine fire if the blade moves while your hands are in the housing. Disconnect it first, reconnect it last.
💡 Pro Tip: If the repaired starter still feels weak after reassembly, the pawls may not be engaging the flywheel cup. Check the cup’s notches for wear and debris — a wire-brush cleaning often restores full engagement.
When to Repair vs. Replace the Whole Starter
Replace individual parts (rope, spring, pawls) when the housing, pulley, and mounting points are intact — it’s the cheaper, greener fix. Replace the complete recoil assembly when the housing is cracked, the pulley is melted or broken, or the spring has failed more than once. Complete assemblies are widely available for common Honda, Briggs & Stratton, and Craftsman engines and often cost only slightly more than a spring kit.
Frequently Asked Questions
Why won’t my lawn mower recoil spring retract the rope?
Almost always a broken or unhooked recoil spring. The spring lives inside the starter housing and provides the tension that rewinds the rope. If it snaps or its end slips out of its anchor, the rope pulls out but stays out. Replacement springs or pre-wound spring cassettes cost a few dollars and install in minutes.
How much does it cost to fix a recoil starter?
A DIY repair typically runs $5–$15: a starter rope costs a few dollars, springs run $3–$8, and pawl kits are similarly cheap. A complete replacement starter assembly usually costs $15–$40 depending on the engine. Compare that with a shop repair at $60–$100 including labor.
How many times should I wind the recoil spring?
Most push mower starters need 4–6 full rotations of the pulley before you lock it and thread the rope. The correct amount is whichever lets the rope retract fully and briskly while the handle rests snugly against the housing without being pulled inward.
Can I use any rope for a lawn mower pull cord?
No — use braided nylon starter rope matched to your engine’s specified diameter (commonly #4.5 or #5, about 3/16 inch) and cut to the same length as the original. The wrong diameter can slip in the pulley anchor, jam in the eyelet, or wear out prematurely. Nylon melts cleanly, so sealing the ends with a lighter is standard practice.
Is it safe to repair a recoil starter at home?
Yes, with two precautions: disconnect the spark plug boot before starting, and treat the recoil spring with respect. The spring is under tension and can snap out of the housing if released incorrectly — wear safety glasses and gloves, and prefer pre-wound spring cassettes over loose springs whenever your model accepts them.
How long does a lawn mower recoil starter repair take?
A rope replacement takes 30–45 minutes for a first-timer, including housing removal and spring rewinding. A spring or pawl replacement adds 15–30 minutes. Once you’ve done it once, the same repair on a second mower typically takes under 20 minutes.
